B-8M Gyrocopter

The Benson B-8M gyrocopter is motorized version of the Benson B-7, a small single-seat gyro-glider developed in the mid-1950s by aviation pioneer Igor Benson. A Russian immigrant to the United States, Benson designed the B-8M as a light, safe rotary-wing aircraft for private use. Little more than a rotor, seat, tailfin and motor the B-8M’s simple design could be assembled from a kit by aviation hobbyists in less than forty hours using simple hand tools.

Gyrocopters are a helicopter-airplane hybrid, like a helicopter the gyrocopter is dependent on its rotor blade to create and maintain lift. Unlike a helicopter, the gyro-copter’s rotor blades are unpowered; therefore, the aircraft requires a short roll before taking-off.

High aircrew loss rates during the height of the Vietnam War spurred the US Air Force to acquire several B-8Ms for training and evaluation giving the aircraft the designation X-25A. As a part of the Discretionary Descent Vehicle program, an attempt was made to integrate gyro-copter features into ejection seats and provide aircrews with the ability to maneuver after ejection in hopes of increasing survivability and evading capture. Tests proved promising however, with the end of the war, loss rates decreased and the DDV program was canceled.

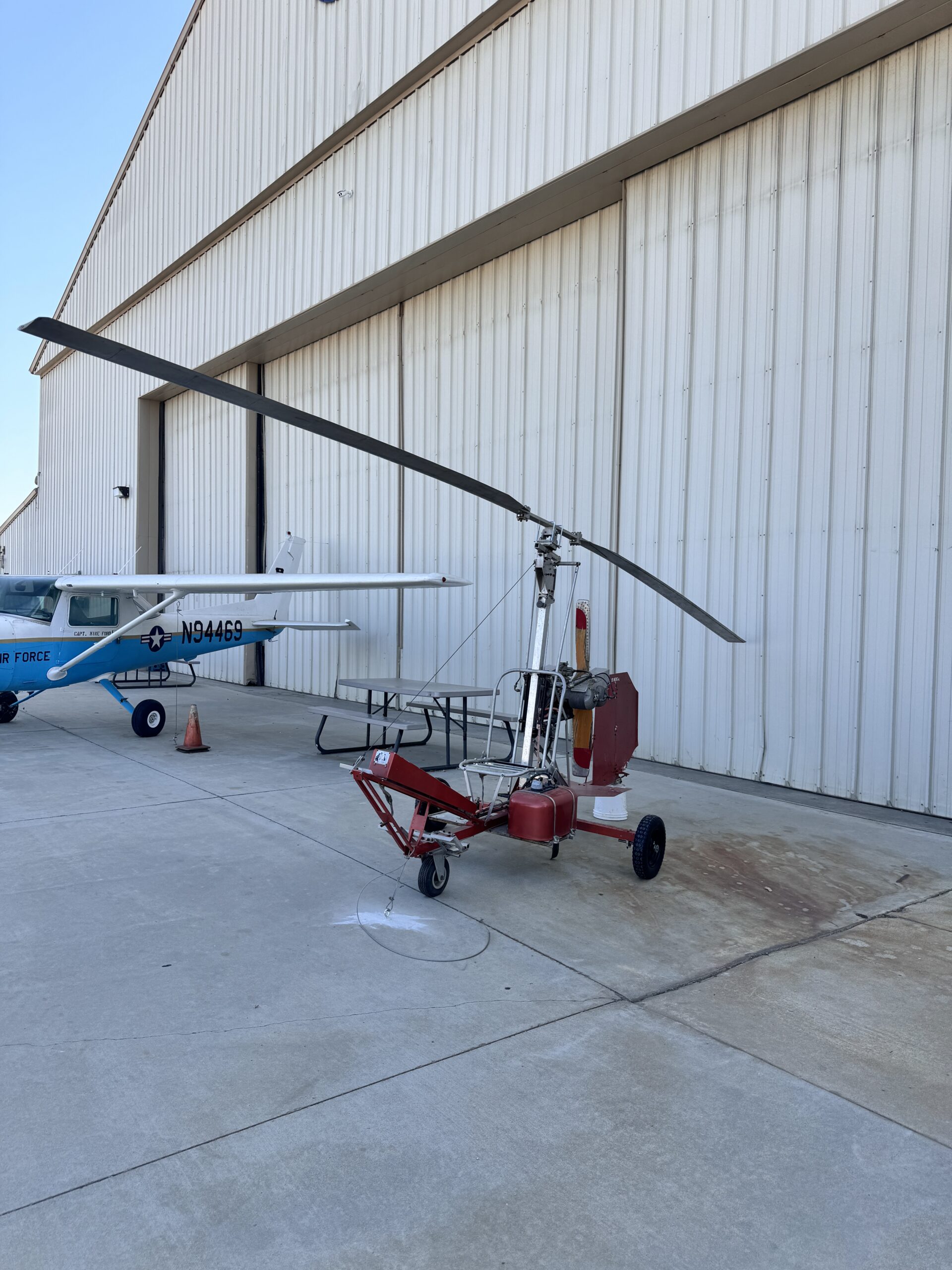

The museum’s Benson 1988 B-8M is on loan from Timothy Smith of Moreno Valley, CA. Serial No. DD-0082-1. Tail Number N7041J.

Manufacturer:	Benson
Designation:	X-25 (Air Force)
Version:	B-8M
Nickname:	Gyro-Copter, Gyro, Autogyro
Type:	a push-propeller aircraft using a wind-powered propeller for lift
Specifications
Length:	11 ft.  4 in.
Height:	6 ft. 3 in.
Rotor Diameter	20 ft. 6 in.
Crew	1
Gross Weight, max	435 lbs.
Gross Weight, empty:	185 lbs. empty
Propulsion
No. of Engines:	1
Powerplant:	McCulloch 4318 piston engine
Horsepower (each):	72 hp (diff options ranged 65 to 90 hp)
Performance
Range:	100 miles in 1 hour and 25 minutes
Cruise Speed:	65 mph
Max Speed:	90 mph
Ceiling:	13,500 Ft
